Time clock machine

A time clocking system has been developed to count passages at a given point. There are multiple use cases, from simple validation of presence for co-working to recording time spent using a room :

  • Access to a location (climbing, rehearsal or dance room, etc.)
  • Counting time spent using a location (Fablab, meeting room, training room, etc.)
  • Certificate of presence
  • Time currency counts (ex: 1 hour of meeting room = 1 token)
  • Door opening (need a webhook to a connected lock)

Configuration​

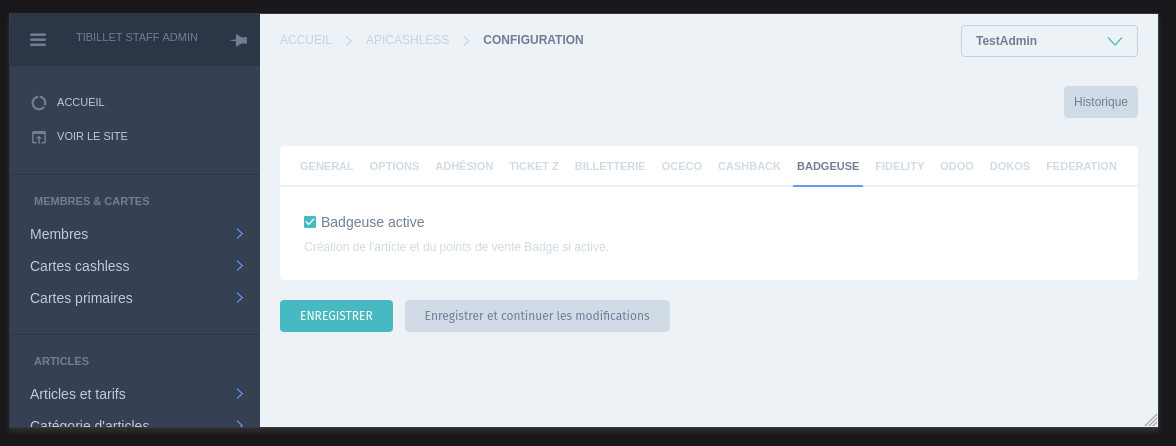

Enable the option in the setup menu. This will create the “Time-clock machine” asset and the corresponding item.

Config Badge

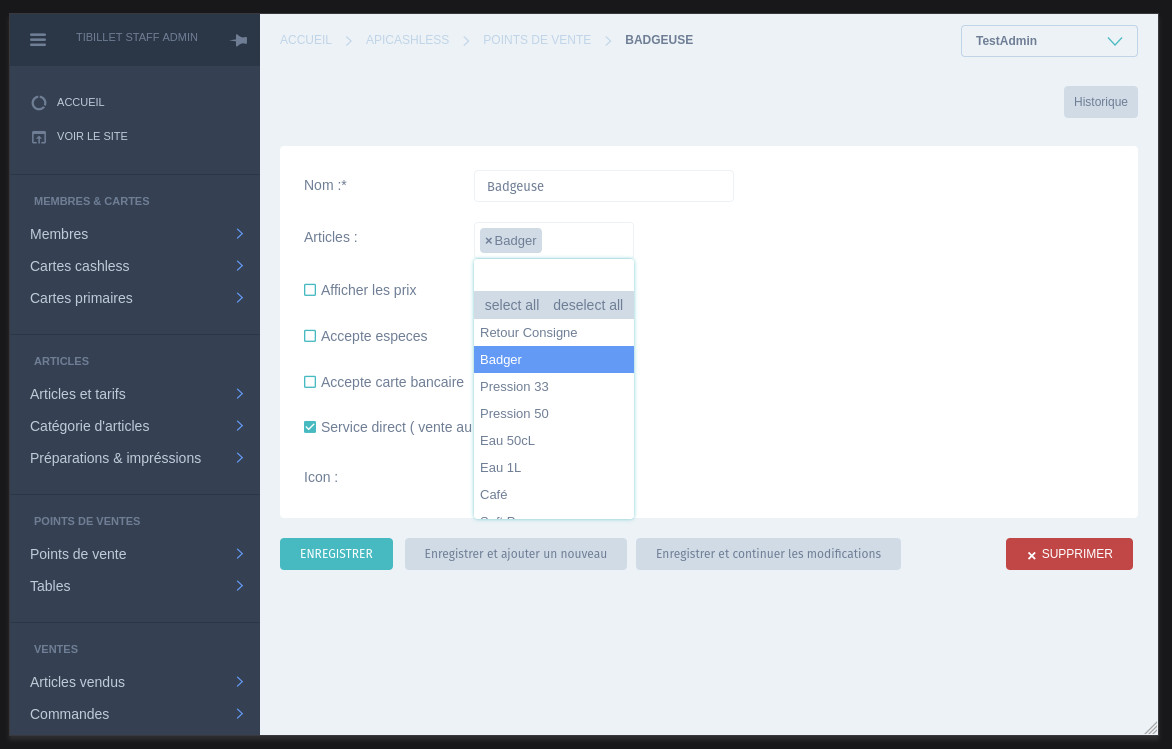

You can now add the "Time-clock machine" item to any point of sale.

Config Badge

For greater clarity, you can deactivate "Show prices" if your point of sale only includes the "Time-clock machine" item

Action !​

If you have created a new point of sale for the Time Clock card reader, remember to link this point of sale to the primary cards.

Config Badge

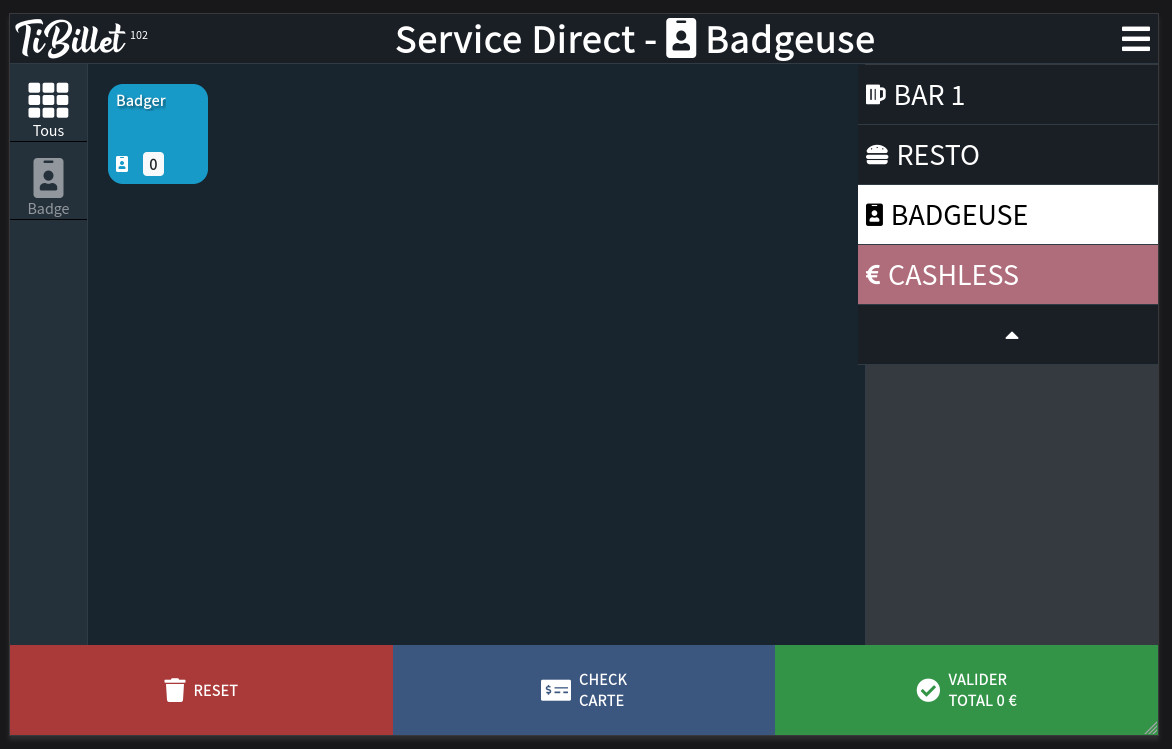

To punch a card, select the “Time-clock machine” box, validate, then scan the card.

Report​

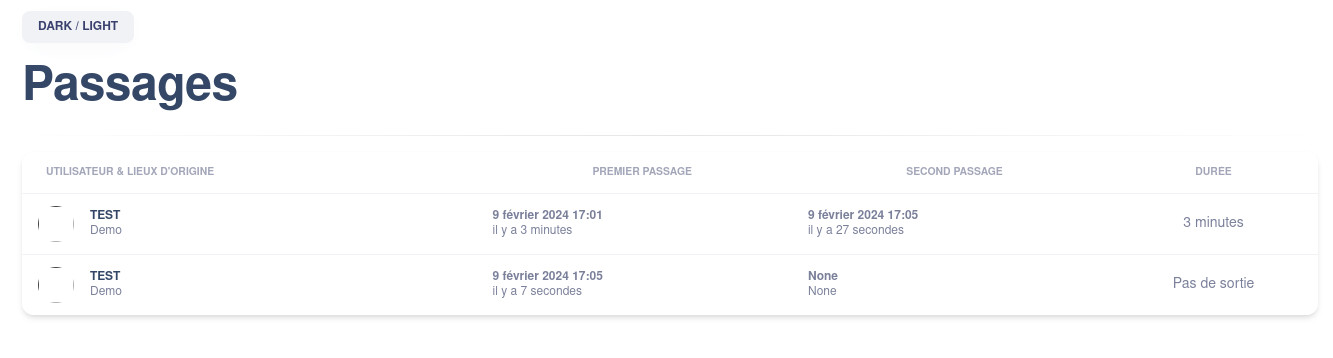

On the main page (Dashboard), you will find the link to the time spend reports. You can also access it via the address https://<URL>/rapport/badgeuse/

Config Badge

Passages are sorted by entry/exit pair.

Pooling with FEDOW​

A single NFC card for several locations, it's possible! You can connect your Time-clocking machine to FEDOW and thus share the same time system with other third parties. Once the connection is made, the passages will be recorded in the FEDOW blockchain.

Join a TiBillet/Fedow federation, configure the time-clock asset as federated, and you will be able to find it in your cashless instance.

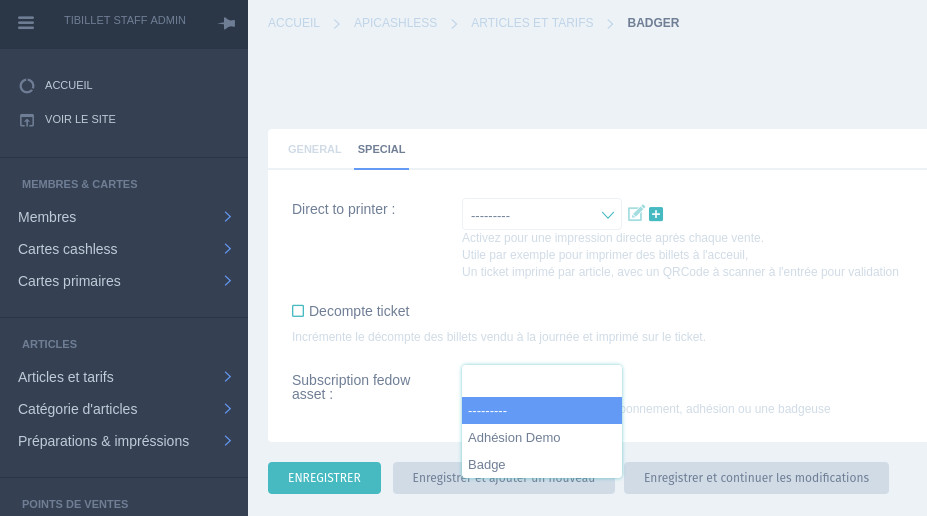

Configure the "Time-clock machine" item on the federated asset. In the Item/Special menu:

Config Badge

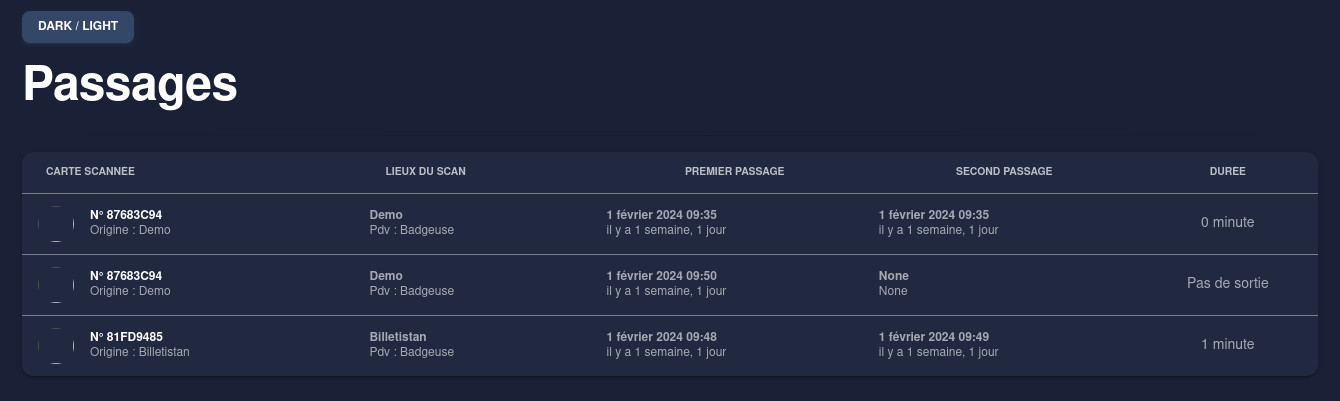

You can now punch a card, and the passages will be recorded in the FEDOW blockchain:

Config Badge

Go further with Dokos​

You can use TiBillet in solo mode or Fedow for the (Inter-venue badge) Badge inter lieux.

See the corresponding Dokos configuration: https://doc.dokos.io/federation-lieux/federation-de-lieux/api/

Contribution​

These features were developed by, for and with the help of :
